R2 Marine, Moen Marin, and Pascal Technologies Launch the NABCREW Zero AirBlue

R2 Marine is proud to unveil one of its latest design projects, the NABCREW Zero AirBlue 1240, developed in collaboration with Moen Marin AS and Pascal Technologies. This groundbreaking zero-emission, electric personnel transport vessel is specifically designed for the aquaculture industry, combining sustainability with cutting-edge maritime innovation.

The NABCREW Zero AirBlue 1240 is designed to accommodate up to eight passengers and features Pascal’s unique AirHull technology, which reduces water resistance by creating an air cavity beneath the hull as the vessel gains speed.

One of the main challenges in the design was integrating the AirHull’s geometry into the vessel’s structure while ensuring it met performance and safety requirements. The effectiveness of the AirHull is closely tied to the vessel’s weight, requiring careful optimization of materials and construction methods to keep the boat as lightweight as possible without compromising its strength or durability.

To address the weight constraints, R2 Marine adopted practical design choices from the outset. These included replacing traditional welding in specific areas with gluing techniques, which minimized excess material. We also reduced the thickness of certain metal structures and replaced non-structural equipment elements with high-performance plastics. These measures ensured the AirHull could function as intended while maintaining durability and safety.

This project exemplified the importance of teamwork and collaboration. R2 Marine, Moen Marin, and Pascal Technologies worked closely throughout the design and implementation process, combining expertise to deliver a vessel that meets the demanding requirements of aquaculture operations while advancing sustainable maritime transport.

R2 Marine, Moen Marin, and Pascal Technologies Launch the NABCREW Zero AirBlue

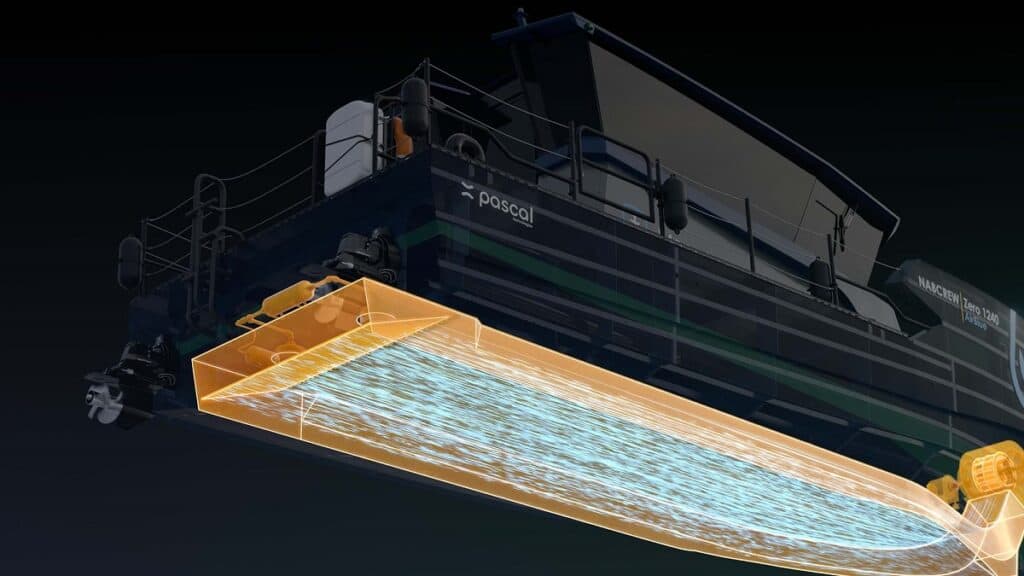

Pascal’s unique AirHull technology

NABCREW Zero AirBlue 1240 Specifications

  • Length – 12 m
  • Beam – 4 m
  • Capacity – up to 8 people
  • Max speed – 30 kn
  • Range – 40 nm
  • Battery capacity – 378 kWh
