In the fast-growing offshore wind energy sector, precision and stability are critical to ensuring efficient and safe operations. Red Rock Power, a leader in innovative maritime solutions, has unveiled its groundbreaking 3D Crane equipped with an advanced Anti-Pendulum Function, setting a new standard for offshore wind turbine maintenance and operations.
The Anti-Pendulum Function is a sophisticated control mechanism designed to counteract the natural swinging motion (pendulum effect) that occurs when lifting loads in dynamic offshore conditions. In offshore wind turbine maintenance, and operations, cranes are often tasked with moving components such as components, tools spare parts etc, which are subject to wind, wave motion, and vessel movement.
Typically, when a crane moves a load, the load may sway or pendulum due to external forces like waves or wind. This pendulum motion can delay operations, increase risks, and decrease accuracy. The Anti-Pendulum Function solves this issue by actively compensating for these movements, enabling the crane to keep the load stable and under control, even in the roughest conditions.
The technology behind the Anti-Pendulum Function is based on advanced algorithms and sensors that detect the sway of the load in real time. Here’s how it works:
- Sensing: The system uses high-precision sensors installed on the crane to monitor any movement or sway. The sensors track the load’s position, velocity, and acceleration in all three dimensions.
- Control Mechanism: Once the system detects any unwanted movement or sway, it activates the Anti-Pendulum control system. The system adjusts the crane’s operation by using the advanced geometry of the 3D diamond shaped tool tip.
- Correction: The crane’s movements are adjusted in real-time to keep the load steady and aligned with the desired position. The system ensures that the load is kept stable even in challenging offshore conditions.
- Precise Placement: As a result, the crane can perform tasks such as lifting, swinging, and precisely placing turbine components with far greater accuracy and efficiency, minimising delays and ensuring safer operations.

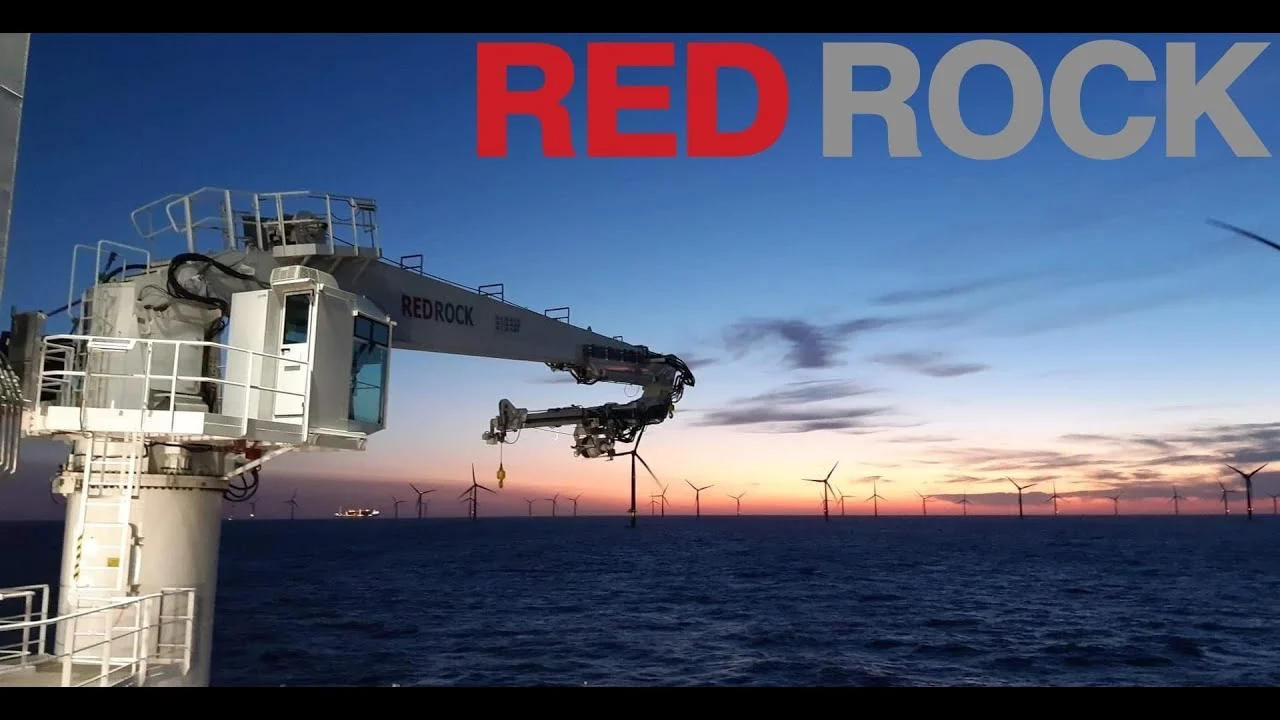

To see this cutting-edge technology in action, watch our video demonstration of Red Rock’s 3D Crane with the Anti-Pendulum Function. The video showcases the crane operating without the function activated, allowing you to observe the swinging motion of the load. Then, with the Anti-Pendulum Function engaged, the load stabilises , demonstrating how the system effectively counteracts sway.
